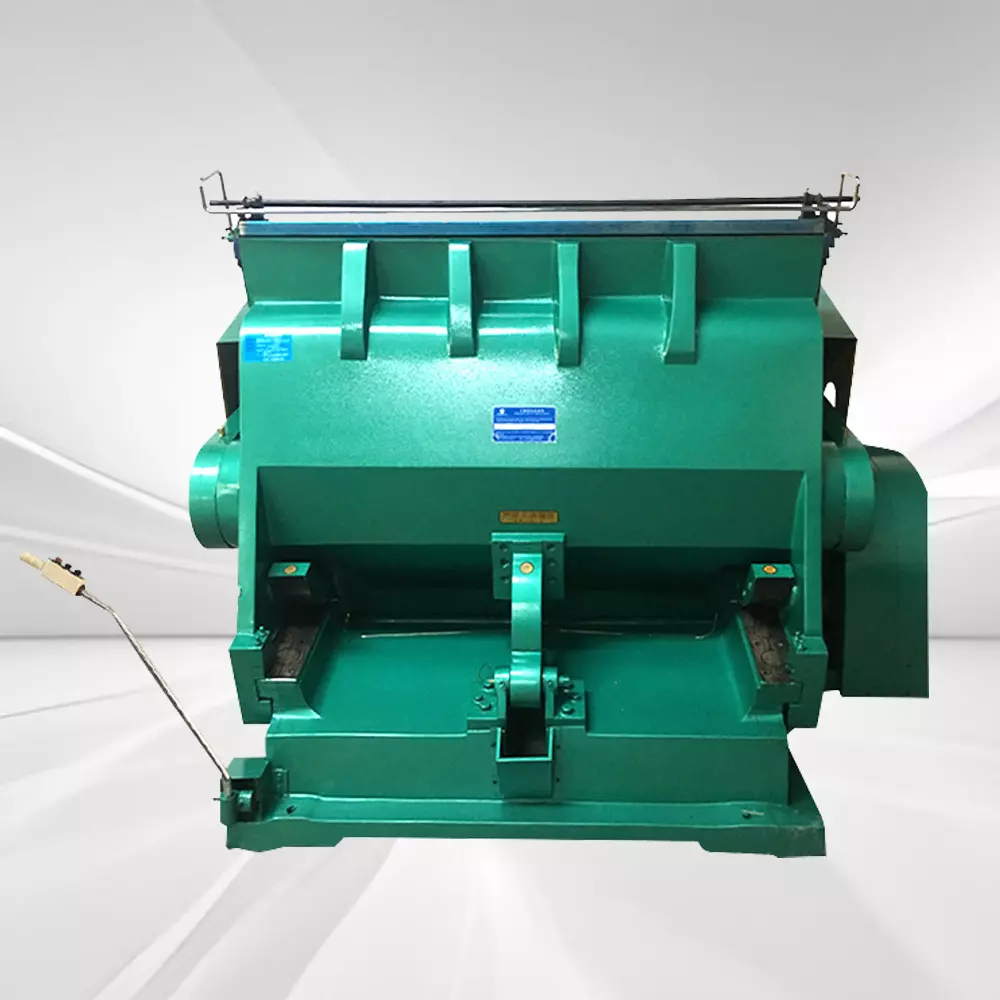

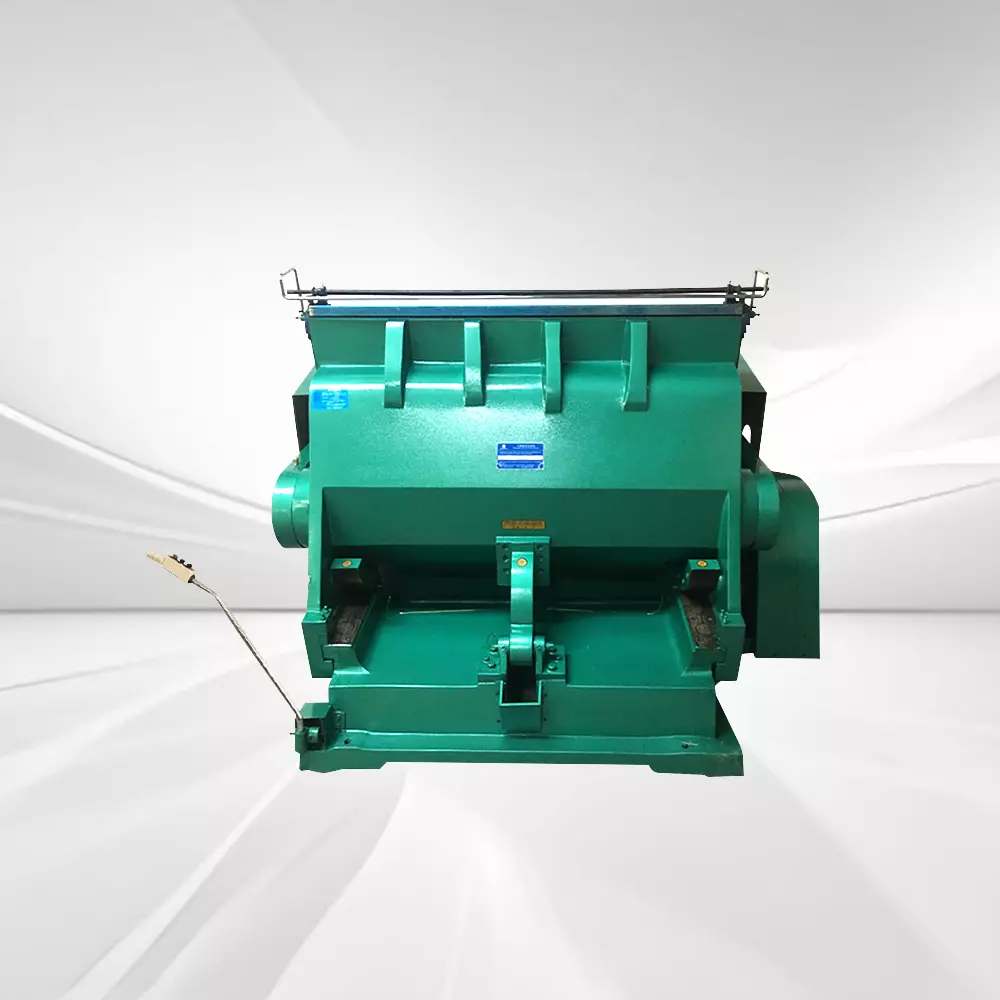

Creasing machine
Stamping process is a kind of special printing process without ink, the so-called stamping is the process of stamping the electrified aluminum foil to the surface of the substrate under a certain temperature and pressure, stamping machine is the equipment to complete the stamping process.
Hot stamping machine is also called flat press hot stamping machine, will be a variety of customized hot stamping plate (corrosion plate) pattern through the electric heating plate heating will be electrochemical aluminum foil hot melting transfer to the surface of the substrate, aluminum foil hot stamping of the graphics show a strong metallic luster, bright and colorful. Mainly applicable to paper, cardboard, leather, plastic sheet, cork and other substrates for hot stamping operations, the equipment has a compact structure, well-made, high precision, safe operation and other advantages.
Adopting long connecting body type device, electrical appliances, electromagnetic clutch directly adopts the important parts of large machines, the overall structure of the machine adopts the full open flat pressure creasing and cutting line machine drawing design. It is the special equipment for pressing and cutting various tough materials with many knife lines, such as corrugated cardboard, plastic sheet, leather and other products. Suitable for printing, packaging, decorating, plastic industry production is extremely durable with. The equipment has the advantages of compact structure, excel
Parameter
Video
| Model | Inside dimensions of the plat frame （mm） | Working speed （Storkes/min） | Indentation cut line length（m） | Motor powe（Kw） | Net weight of the machine | Weight of the machine | Overall dimensions（LXWXH)m |
| ML-3000 | 3000×1600 | 14±2 | <80 | 30 | 35000 | 4.25×2.3×3.4 | |
| ML-2800 | 2800×1500 | 14±2 | <75 | 22 | 23000 | 4.05×2.3×3.3 | |
| ML-2600 | 2600×1500 | 14±2 | <70 | 22 | 20000 | 3.85×2.3×3.3 | |
| ML-2500 | 2500×1500 | 14±2 | <70 | 22 | 18500 | 3.75X2.3X3.3 | |
| ML-2200 | 2200×1400 | 14±2 | <68 | 18 | 16500 | 3.45×2.3×3.2 | |
| ML-2000 | 2000×1400 | 14±2 | ≤65 | 15kw-6H 380V | 14000 | 14300 | 3.25×2.3×3.2 |
| ML-1800 | 1800×1280 | 14±2 | ≤60 | 15kw-6H 380V | 12000 | 13000 | 3.05×2.3×3.1 |
| ML-1600 | 1600×1250 | 14±3 | ≦50 | 15kw-6H 380V | 10500 | 10800 | 2.7×2.2×2.9 |
| ML-1500加高 | 1500×1150 | 18±3 | ≦45 | 7.5kw-4H 380V | 7200 | 7400 | 2.55×2.1×2.1 |
| ML-1500 | 1500×1050 | 18±3 | ≦45 | 7.5kw-4H 380V | 7000 | 7200 | 2.55×2.1×2.1 |
| ML-1400 | 1400×1000 | 18±2 | ≦40 | 5.5kw-4H 380V | 6200 | 6500 | 2.45×2.1×2 |
| ML-1300 | 1300×920 | 18±2 | ≦40 | 5.5kw-4H 380V | 5500 | 5700 | 2.35×2.1×2 |
| ML-1200 | 1200×820 | 22±3 | <30 | 5.5kw-6H 380V | 4200 | 4500 | 2×2×1.7 |
| ML-1100 | 1100×800 | 22±3 | <30 | 4kw-6H 380V | 3800 | 4000 | 2.03×1.9×1.75 |
| ML-930 | 930×670 | 25±2 | ≤25 | 4kw-4H 380V | 2800 | 3000 | 1.8×1.6×1.65 |
| ML-750 | 750×520 | 28±2 | <15 | 2.2kw-6H 380V | 1800 | 2000 | 1.5×1.35×1.6 |
| PYQ-1040 | 1040×720 | 23±2 | <28 | 5.5 | 4500 | 1.95*1.6*1.42 |
| Model | Inside dimensions of the plat frame（mm） | Working speed (Storkes/min) | Indentation cut line length(m) | Motor powe（Kw） | Net machine weight | Machine weight (kg) | Overall dimensions(LXWXH) m | Temperature range | Motor power |
| ML-930H(Weighting） | 930×670 | 25±2 | ≤25 | 5.5kw 380V-50Hz | 3200 | 3400 | 2×1.75×1.6 | ||
| ML1100H(Weighting） | 1100×800 | 22±2 | ≤30 |
5.5KW-6H 380V-50Hz |
4500 | 4700 | 2.05×2.03×1.7 | ||
| HML-930(Heating） | 930×670 | 25±2 | ≤25 | 5.5kw 380V-50Hz | 3600 | 2×1.75×1.6 | 0-300 | 11KW | |
| ML-1100H(Heating） | 1100×800 | 22±2 | <30 | 5.5kw-6H 380V | 4700 | 2×1.9×1.7 | 0-300 | 15KW | |
|
HML930(Heating,Weighting） |
930×670 | 25±2 | ≤25 | 5.5kw 380V-50Hz | 3100 | 3300 | 2×1.65×1.7 | 1-170℃ | 12KW |
|
ML1100H(Heating,Weighting） |
1100×800 | 23±2 | ≤30 | 5.5KW-6H 380V-50Hz | 4500 | 4700 | 2×1.9×1.7 | 1-170℃ | 13.8KW |
