QZK 1640/1860/2000M15 papet cutting machine

The appearance of the new right-angle body. Schneider AC contactor, DeLisi air switch, Omron micro-open light, NSK drive bearings, 16 eyes double relay infrared protection, Hansheng seals, linear guides and ball screws;

Display system: with 15-inch Taiwan touch LCD screen, program storage up to 10,000, the fastest push paper speed up to 18 m / min, with fault self-diagnosis function, data resolution of 0. 05 mm, with servo drive system, Delta PLC .

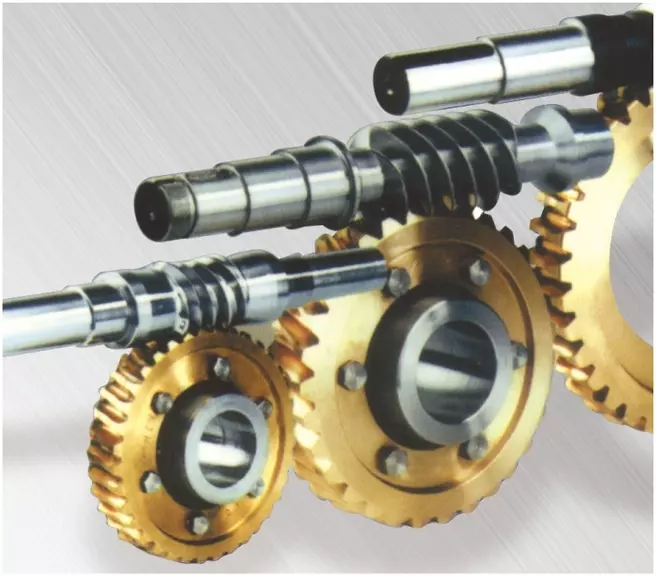

Paper cutting system: secondary envelope turbine reducer, double hydraulic clutch cutting more smoothly and gently. The main motor is Shanghai Yaojiang motor, the wind pump is selected from Zhejiang Sen Sen Group factory, power 0.75 kW, large air volume, to ensure that the paper can move easily and flexibly in the plating plane. Increase the convenient knife changing device, knife strip ejection device, the machine body and the flat plate to increase the centralized oil supply device.

Parameter

Video

QZK 1860M15 paper cutter assembly diagram

Machine details

* Ball lead screw and linear guide-rail makes paper impeller run smooth,low noise,accurate positioning,enhance the cutting precision and speed greatly,prolong the service lift of paper cutter.

* Imported hydraulic components are adopted in hydraulic system, the pressure can be adjusted,The paper is pressed twice by pressure-increased system.

Machine details

* To provide infrared grating ciruit protection,in line with european ce standards.

* The working tables are all chrome-plated and equipped with air balls which makes paper-pushing easily and rusty-proof. Large side working table(1000X800mm) is optional.
