D800S/D1060S/D1300S Feida die-cutting machine

Automatic die-cutting and creasing machine is the key equipment for die-cutting and creasing of paper boxes, cartons, trademarks and other kinds of paper products and films, and cold pressing and embossing.

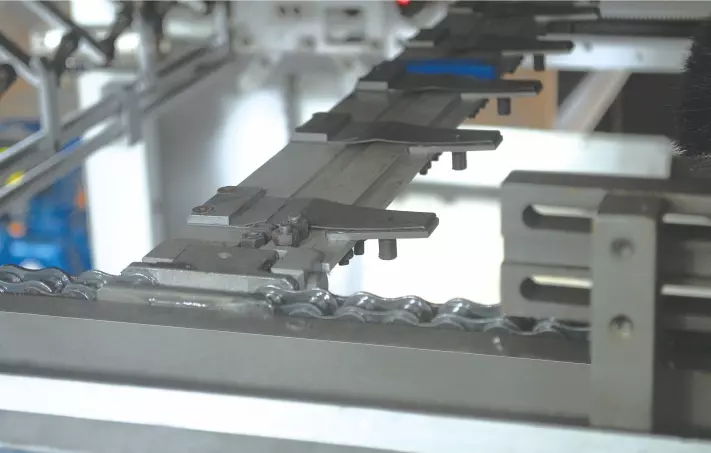

The machine adopts high-speed flyer, high-strength gripper teeth row, swinging overall front gauge, push-pull side gauge, high-precision intermittent mechanism, pneumatic locking plate, pneumatic clutch, overload protection, automatic paper collection, which realizes smooth paper feeding, accurate positioning, stable die-cutting, and neat paper collection.

Applying microcomputer control to realize the whole process automation of the machine, and displaying the working condition and troubleshooting method through the man-machine interface. The key components, control system and fasteners are all imported and carefully assembled to ensure the safety and reliability of the machine. There are sensors and safety devices in many places to ensure the normal work of the machine and personal safety.

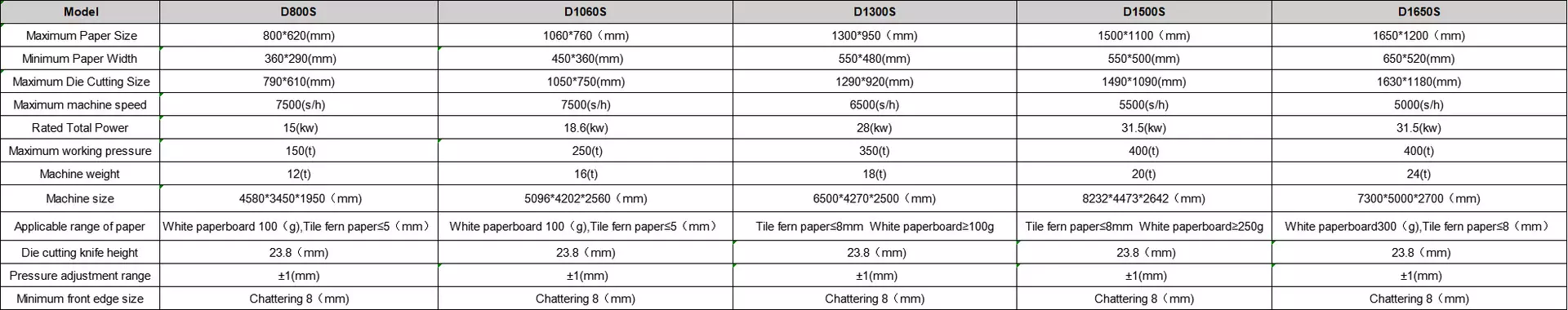

Parameter

Video

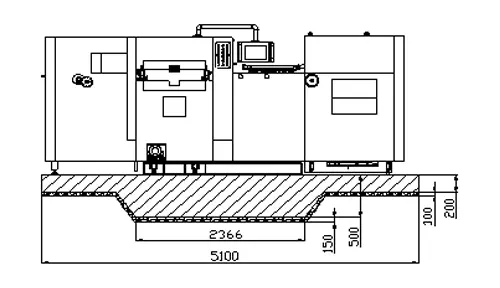

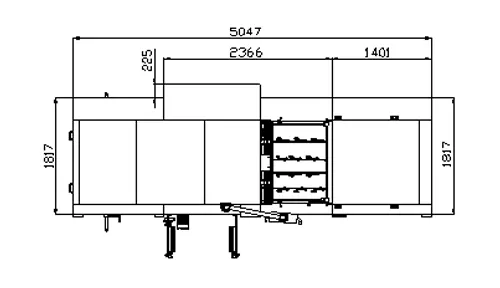

D1060S Installation drawing

Feida, per delivery part

*European technology manufacturing precision Feida head cardboard, corrugated paper, and grey board paper are commonly used

*By controlling Feida through servo motors, the suction angle and height of the paper can be adjusted according to the deformation of the paper

*The suction angle and height can be adjusted according to the deformation of the paper

*Unique paper receiving mechanism, suitable for different deformations of paper

*The high-speed Feida head is made of special aluminum alloy material, and all parts are imported

*Paper feeding switch anti misoperation paper following device

*Dual Feida Head Collision Detection Device

*Switching between main and auxiliary paper feeding without stopping the machine

*Optional pre coding paper mechanism set

*Fish scale style paper feeding, smooth and accurate

*Fine tuning mechanism for paper feeding table, non-stop adjustment

*Dual purpose paper table

*Equipped with one set of auxiliary paper support rods and two sets of cardboard support boards

*Configure a 15 inch human-machine interface and a 7-inch secondary computer screen

*Configure real-time high-definition production monitoring screen

*Configure fully automatic computer voltage regulation

Machine details ---- Principle of working mode of paper feeding part

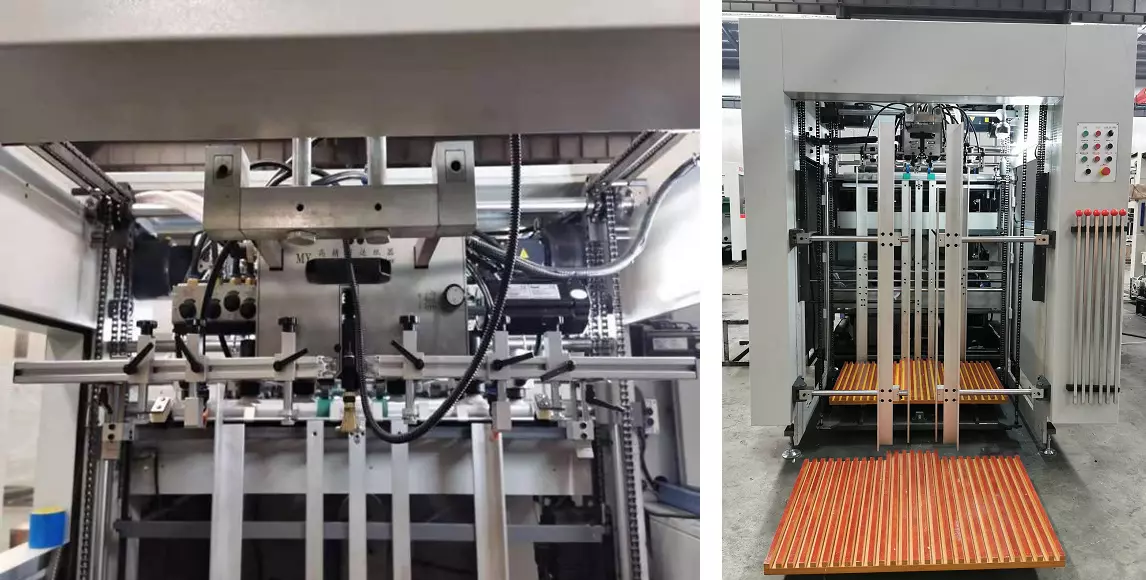

Paper feed stand

* The advanced control system is used to control the speed device of paper feeding to make the paper delivery stale and reduce collision.
* Photoelectric double detector.
* Import paper conveyor belt.
* Ultra-Wear Resistant polyurethane paper transport wheel.

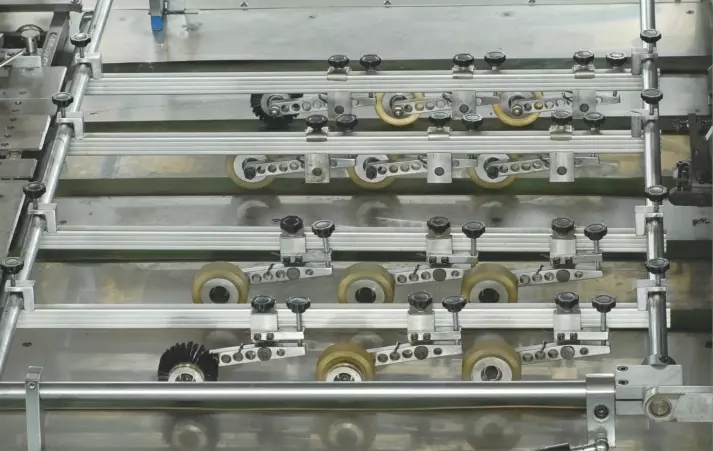

* Adjustable rubber wheels and brush wheels ensure precise positioning of arrival front and side return.

Front /side gauge

* Pre-test ensures paper arrival rate.
* Using left and right double push-pull gauges to meet different printing registration requirements.
* Sheet steel sheet press paper,uniform and reliable force.

Machine details ---- Principle of working mode of die cutting part

Die cutting part

* The pressure bearing parts are high strength ductile iron-QT600-3,cast by special technology,with high strength and permanent deformation.

* Nickel-chromium-molybdenum-gold steel crankshaft with special process for imported steel from Germany.

* Taiwan imported ultra-wear-resistant worm gear and worm.

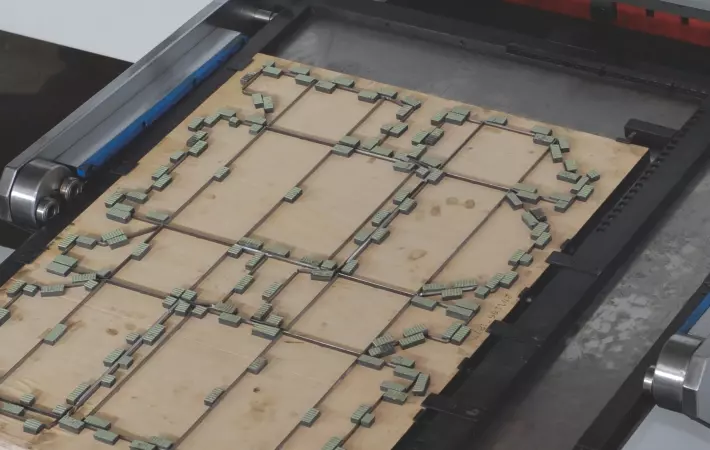

* Convenient and fast tool template turning device.

* Strong oil supply lubrication system.

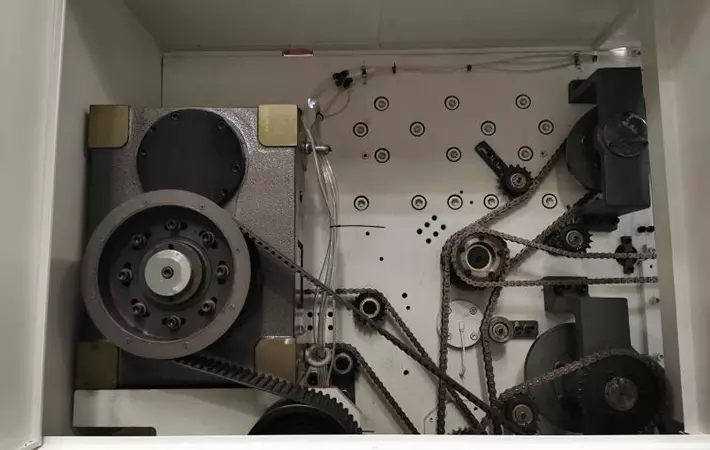

* High precision 240 degree intermittent mechanism.

* Pneumatic locking device is safe and fast.

* High speed rotary joint.

* Maximum pressure is 300 tons (maximum pressure of press type is 600 tons).

* Using advanced honeywell main motor (optional configuration),the die cutting speed can reach 7500 sheets per hour.

* Die-cutting plate frame adopts intermediate positioning system with fine-tuning device.

* Dual-color screen shows the working state of the machine at any time.

* Configure oil air cooling system

Machine details ---- Working mode principle of electrical part

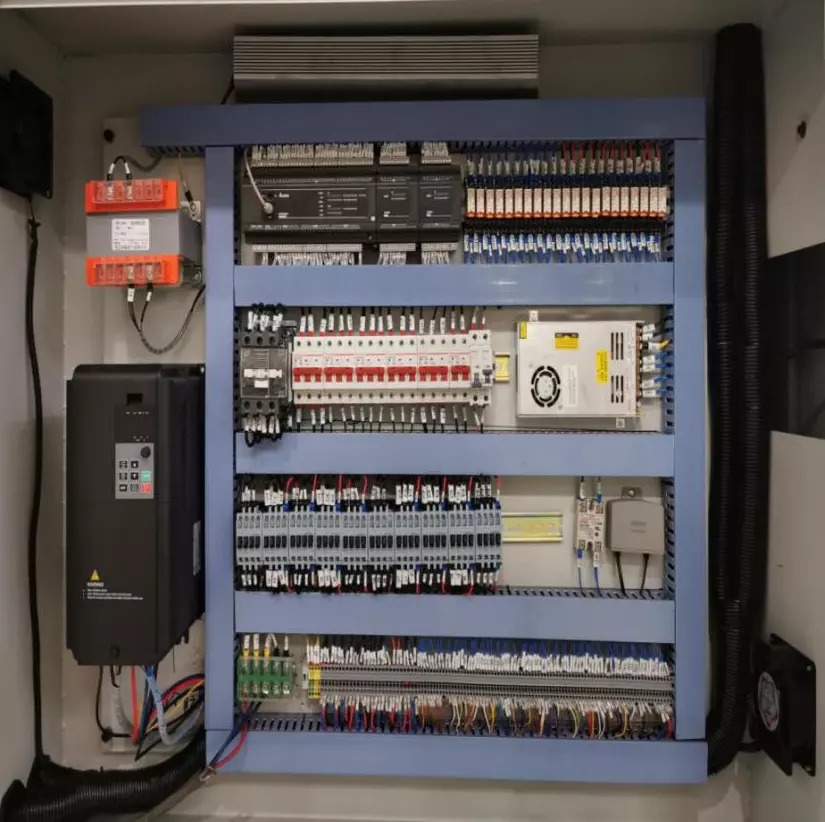

* The whole machine adopts American Meiji and French schneider electric. Components to ensure stable operation of the machine.

Machine details ---- Principle of working mode of paper receiving part

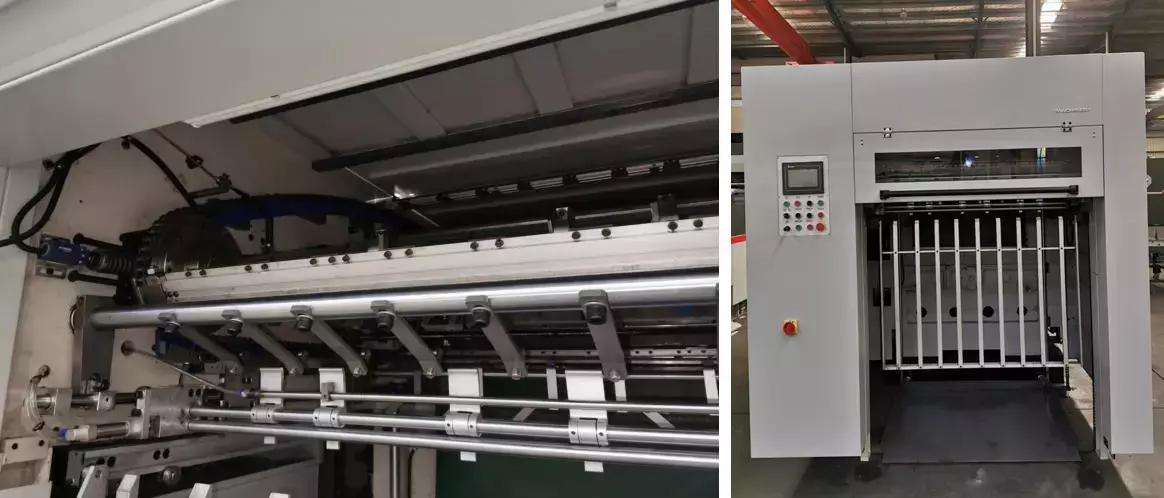

Receiving department

* Automatic paper leveling device,paper receiving two-way blowing device to ensure.

* Thick and thin paper can collect paper neatly.

* Paper collecting department is equipped with control to realize more humane operation.

* Photoelectric paper receiving to ensure paper receiving regularly.

* Automatic lifting control system of paper receiving table.

* Manual paper collection.

* Main chain protective device.
