LD-2 Automatic loader machine

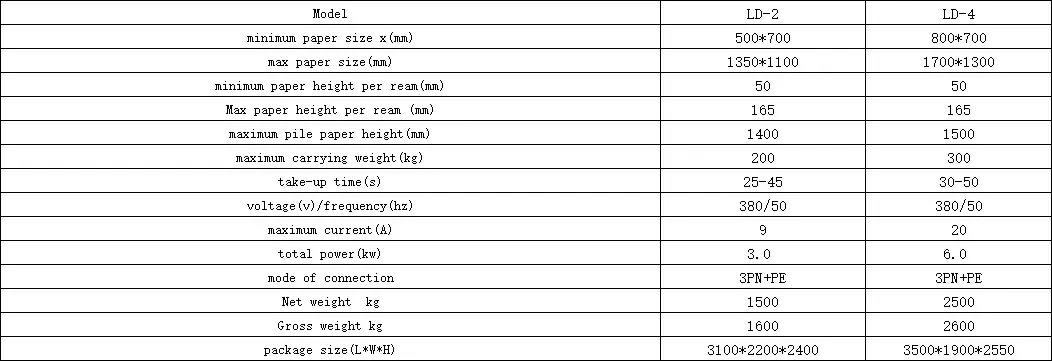

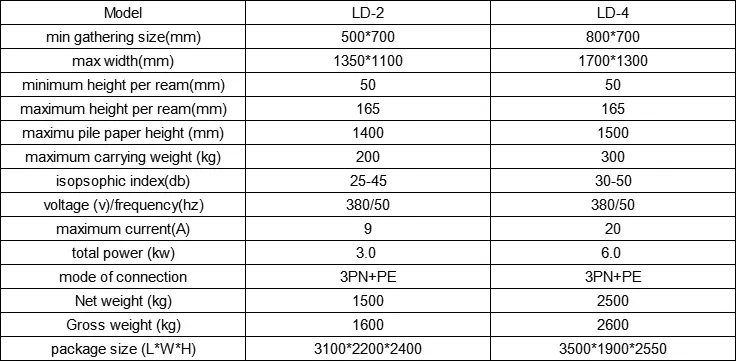

Configuration list


Machine Details


1. Automatic paper feeding, unloading, stacking function, quickly remove the paper from the worktable, and stacked neatly in the designated position, greatly reducing the labor intensity of workers.


2. Infrared position detection device, accurate detection of the position of the paper, to ensure that the paper stacked neatly. Anti-collision flexible bumper, effectively prevent accidental collision during machine movement.


3. Clamping pneumatic control, safe clamping of paper, protect the corners of paper from external impact. High performance motor, imported from Taiwan. Equipped with 10.4 inch touch screen, making the operation simple and easy. Ergonomic, avoid operation injury.
Optimized design of overweight safety stop protection. The working platform is equipped with blowing structure, which is convenient for pushing and unloading paper. Chrome-plated working platform saves user's maintenance time.
