Automatic knife grinding machine
Wheel Size：Wheel Size Cylindrical Φ200×Φ150×100（Φ300×Φ250×100）mm
Maximum grinding width ：taken 22°as final 300 mm
Effective height of the grinding wheel and table ：80 mm
Table rotation ：0～±90 °
Grinding rotation speed ：0-1800 r/min(Adjustable Frequency)
Grinding movement speed ：3～15m/min (Adjustable Frequency)
Movement electromotor power ：0.55 KW
Grinding head motor power ：4 KW
Pump motor power ：0. 25 KW
Product Details

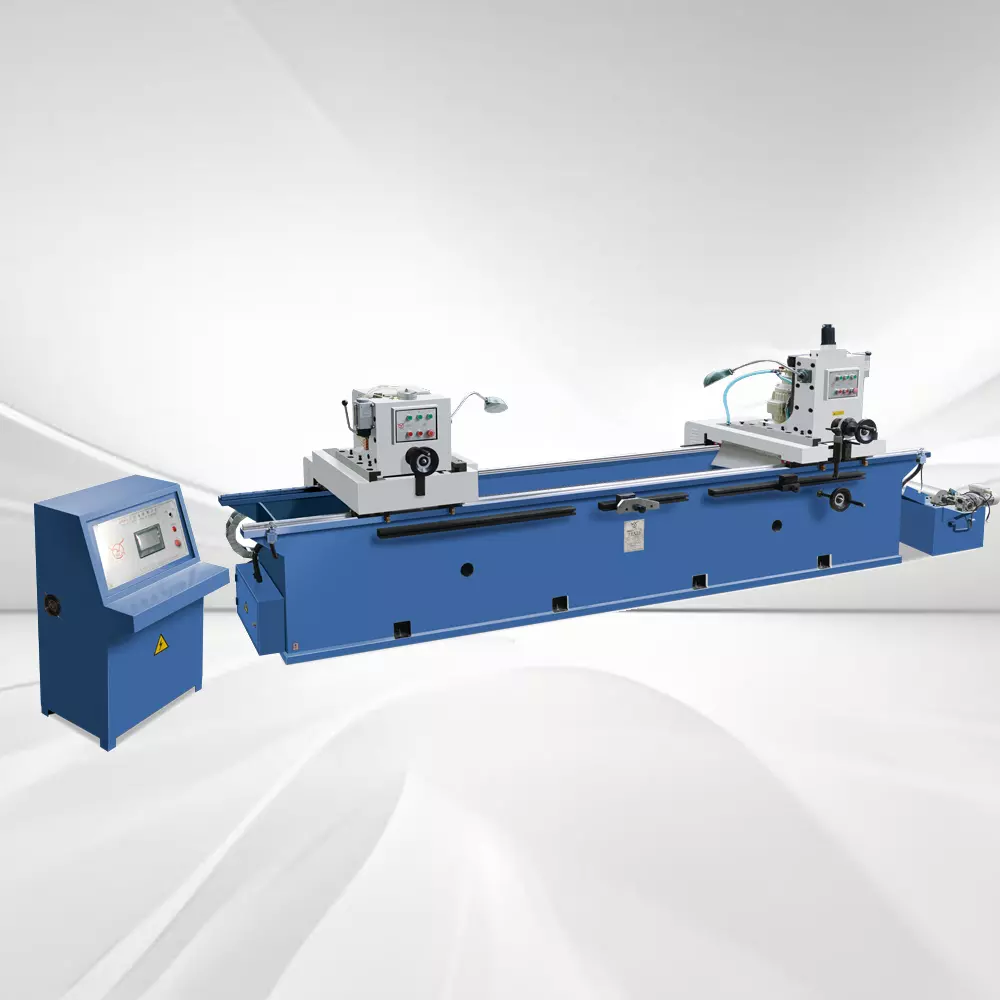

Automatic Knife Grinding Machine Model DMSQ-HF’s body is the gantry-type body which adopts the carbon constructional quality steel; Its wheel head transmission is rolling positioning linear guide; Rails can be replaced, that the machine can last longer, travel more stable drive.
Automatic feed grinding wheel by the PLC program control system, automatic control, and memory, storage and dynamic tracking, simple operation, greatly reducing the time to prepare work piece ; can automatically adjust the coarse grinding, grinding times, the Brothers more convenient, is Medium-sized printers.
It is he best choice for small and medium sharpening room.
