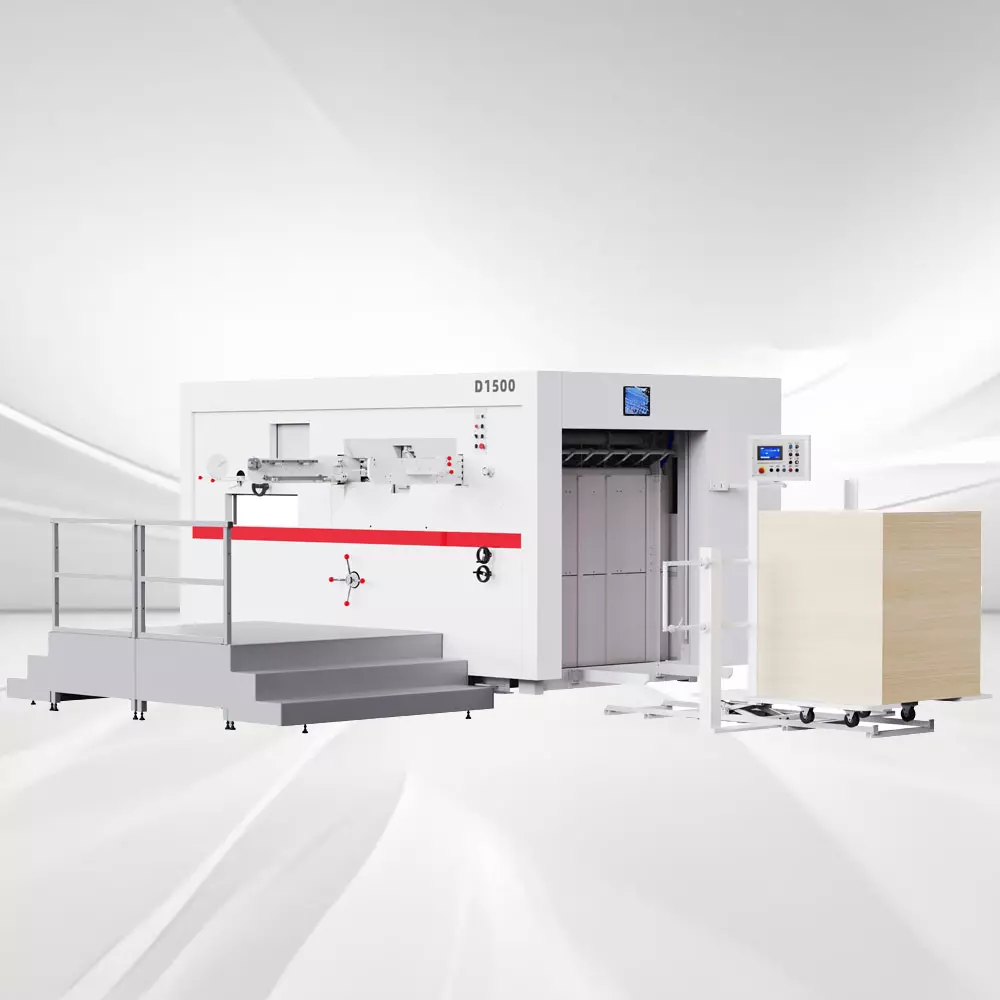

Semi-automatic die-cutting machine
Max Paper Size：1500*1110（mm)
Min Paper Size：550*500(mm)
Max.Die Cutting Size：1490*1090(mm)
Max Speed：5500(s/h)
Power of main motor ：18.5(kw)
Total Power：21.5(kw)
Applicable Scope Of Paper ：White board ≥250(g),Tile fern paper ≤8(mm)
Minimum Nagging Size ：Chopped Teeth 8(mm)
Module Accuracy ： ±0.25(mm)
Give the Maximum Height Of The Paper Pile ： 1500mm
Maximum Height Of the Paper Collecting Pile： 1350mm
Machine Weight ：16(t)
Product Details
Semi-automatic flatbed die-cutting machine can process cardboard and corrugated cardboard of >250g and <9mm, suitable for die-cutting and creasing of cartons and boxes, especially good at die-cutting curved cardboard.
Worm gear drive crankshaft connecting rod, single-point tie rod pressure adjustment is the core of equipment stability, PLC programmable controller centralized control, to achieve full automation of paper feeding, die-cutting, paper collection, fault detection.
The main motor is controlled by frequency converter, stepless speed change, smooth running. Imported chains, main drive shaft bearings and various switches are made of Taiwan and Japan products with excellent performance, high precision and long service life.
