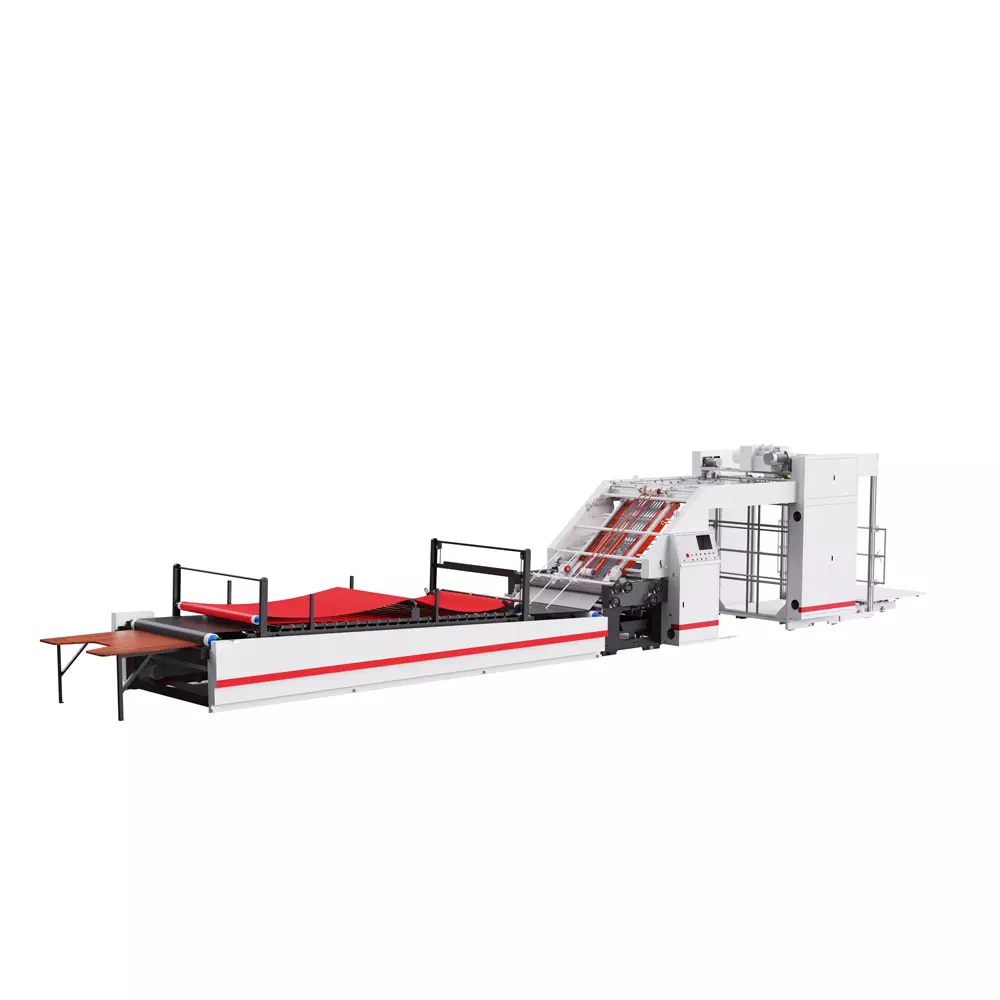

DS1450 Automatic Laminating Machine

Computerized high-speed lamination, up to 12000 sheets per hour (paper length 700mm).

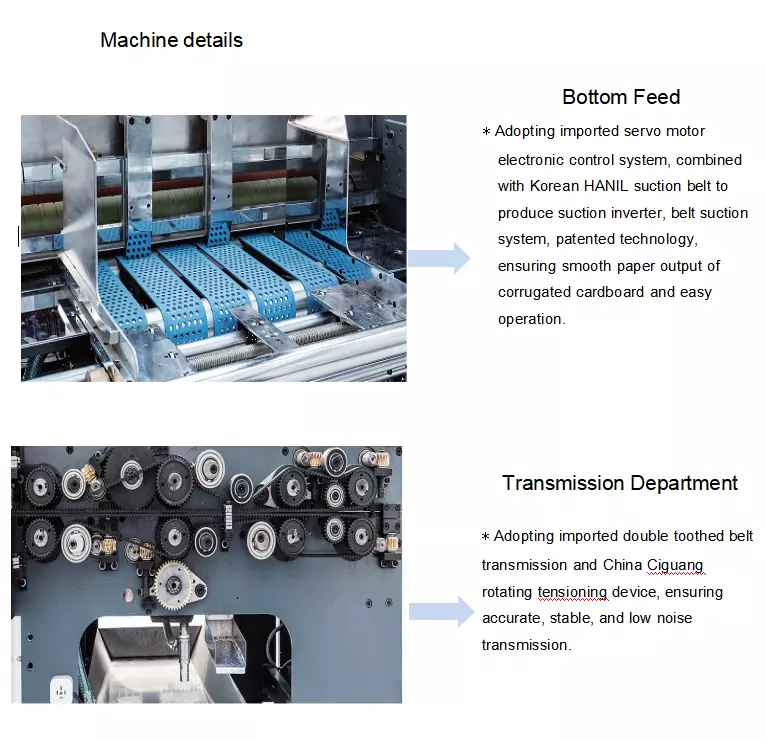

The flow type paper feeding head is equipped with 4 sets of "forward suction nozzles" and 2 sets of "upper and lower suction nozzles".

Feida seat: E-type low platform stacked cardboard design, which can fit the paper in place with a pallet truck; Optional installation of track assisted pre stacking paper table.

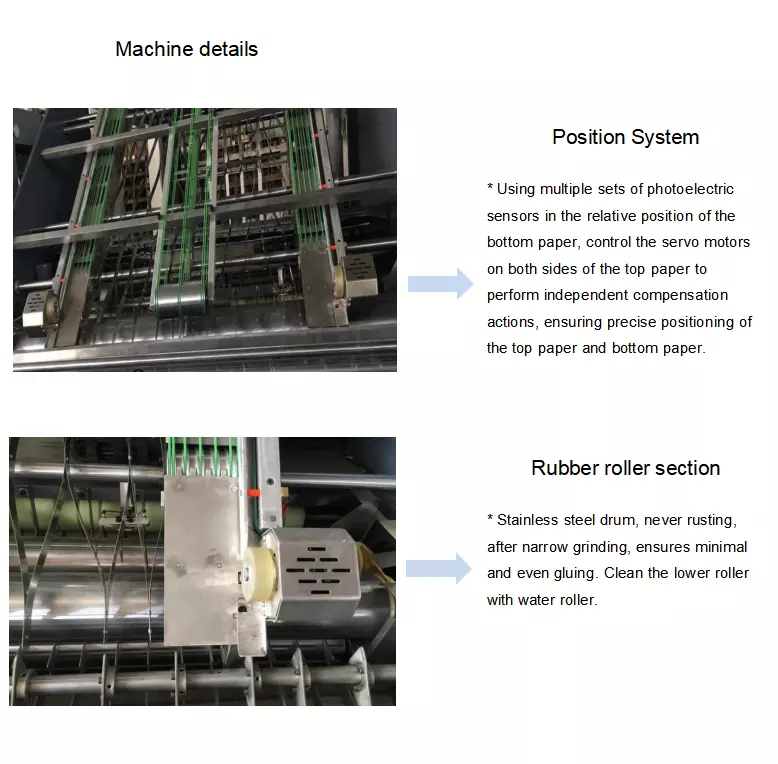

Glue coating device: Using multiple sets of inductance eyes to know the relative position of the bottom line forward, the servo motors on both sides of the paper can independently transmit and compensate for the alignment of the upper and lower paper, ensuring accurate and smooth operation.

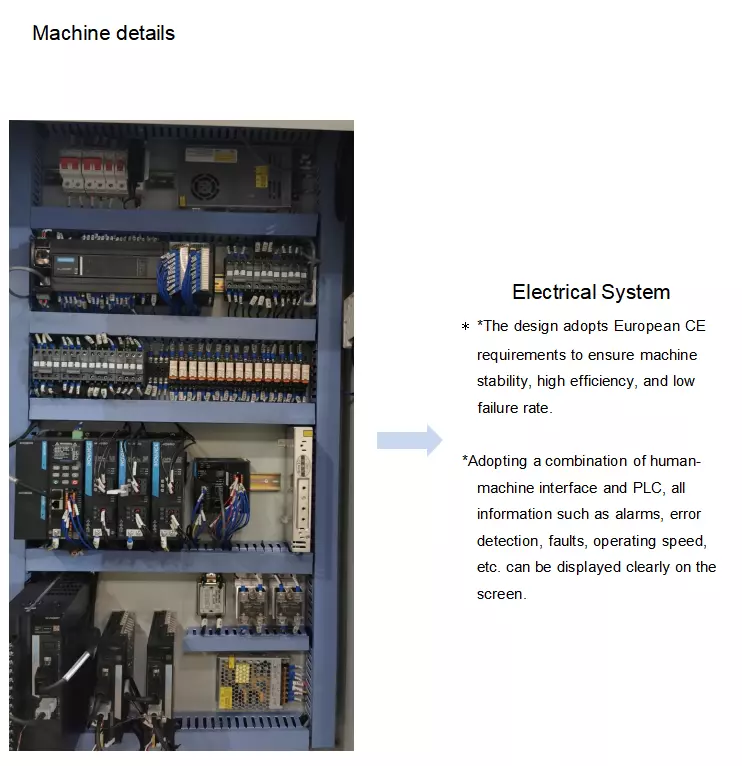

Fully functional electronic control system: Application of human-machine interface and PLC program light display, capable of automatic detection of conditions, abnormal display and work records, electrical planning symbol CE standard.

Paper receiving mechanism: Equipped with a shaking and loosening paper structure, it can shake and loosen the overlapped and pressed finished products first and then push them together, ensuring a neat and smooth paper receiving.
